| Technical Data |

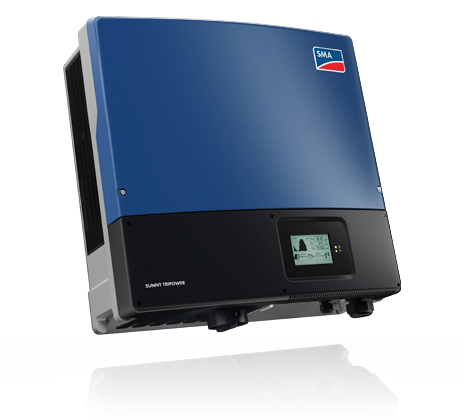

Sunny Tripower 15000TL |
Sunny Tripower 20000TL |
Sunny Tripower 25000TL |
| Input (DC) |
|
|
|
| Max. generator power |
27000 Wp |
36000 Wp |
45000 Wp |
| DC rated power |
15330 W |
20440 W |
25550 W |
| Max. input voltage |
1000 V |
1000 V |
1000 V |
| MPP voltage range / rated input voltage |
240 V to 800 V / 600 V |
320 V to 800 V / 600 V |
390 V to 800 V / 600 V |
| Min. input voltage / start input voltage |
150 V / 188 V |
150 V / 188 V |
150 V / 188 V |
| Max. input current input A / input B |
33 A / 33 A |
33 A / 33 A |
33 A / 33 A |
| Number of independent MPP inputs / strings per MPP input |
2 / A:3; B:3 |
2 / A:3; B:3 |
2 / A:3; B:3 |
| Output (AC) |
|
|
|
| Rated power (at 230 V, 50 Hz) |
15000 W |
20000 W |
25000 W |
| Max. AC apparent power |
15000 VA |
20000 W |
25000 W |
| AC nominal voltage |
|
3 / N / PE; 220 V / 380 V 3 / N / PE; 230 V / 400 V 3 / N / PE; 240 V / 415 V |
|
| AC voltage range |
|
180 V to 280 V |
|
| AC grid frequency / range |
|
50 Hz / 44 Hz to 55 Hz 60 Hz / 54 Hz to 65 Hz |
|
| Rated power frequency / rated grid voltage |
|
50 Hz / 230 V |
|
| Max. output current / Rated output current |
29 A / 21.7 A |
29 A / 29 A |
36.2 A / 36.2 A |
| Power factor at rated power / Adjustable displacement power factor |
|
1 / 0 overexcited to 0 underexcited |
|
| THD |
|
≤ 3% |
|
| Feed-in phases / connection phases |
|
3 / 3 |
|
| Effi ciency |
|
|
|
| Max. effi ciency / European Effi ciency |
98.4% / 98.0% |
98.4% / 98.0% |
98.3% / 98.1% |
| Protective devices |
|
|
|
| DC-side disconnection device |
|
● |
|
| Ground fault monitoring / grid monitoring |
|
● / ● |
|
| DC surge arrester (Type II) can be integrated |
|
○ |
|
| DC reverse polarity protection / AC short-circuit current capability / galvanically isolated |
|
● / ● / — |
|
| All-pole sensitive residual-current monitoring unit |
|
● |
|
| Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) |
|
I / AC: III; DC: II |
|
| General data |
|
|
|
| Dimensions (W / H / D) |
|
661 / 682 / 264 mm (26.0 / 26.9 / 10.4 inch) |
|
| Weight |
|
61 kg (134.48 lb) |
|
| Operating temperature range |
|
−25 °C to +60 °C (−13 °F to +140 °F) |
|
| Noise emission (typical) |
|
51 dB(A) |
|
| Self-consumption (at night) |
|
1 W |
|
| Topology / cooling concept |
|
Transformerless / Opticool |
|
| Degree of protection (as per IEC 60529) |
|
IP65 |
|
| Climatic category (according to IEC 60721-3-4) |
|
4K4H |
|
| Maximum permissible value for relative humidity (non-condensing) |
|
100% |
|
| Features / function / Accessories |
|
|
|
| DC connection / AC connection |
|
SUNCLIX / spring-cage terminal |
|
| Display |
|
○ |
|
| Interface: RS485, Speedwire/Webconnect |
|
○ / ● |
|
| Data interface: SMA Modbus / SunSpec Modbus |
|
● / ● |
|
| Multifunction relay / Power Control Module |
|
○ / ○ |
|
| Shade management SMA ShadeFix / Integrated Plant Control / Q on Demand 24/7 |
|
● / ● / ● |
|
| Off-Grid capable / SMA Fuel Save Controller compatible |
|
● / ● |
|
| Guarantee: 5 / 10 / 15 / 20 years |
|
● / ○ / ○ / ○ |
|
| Certifi cates and permits (more available on request) * Does not apply to all national appendices of EN 50438 |
|
AS 4777, BDEW 2008, C10/11, CE, CEI 0-16, CEI 0-21, CNS 15382, CNS 15426, DEWA 2.0, DK1, DK2, EN 50549-1, EN 50549-2, G99/1, EN 50438:2013*, IEC 60068-2-x, IEC 61727, IEC 62109-1/2, IEC 62116, IS 16221-1/2, IS 16169, MEA 2013, NBR 16149, NEN EN 50438, NRS 097-2-1, PEA 2013, NTS, PPC, RD 1699/413, RD 661/2007, Res. n°7:2013, RfG compliant, SI4777, TOR generator, UTE C15-712-1, VDE 0126-1-1, VDE-AR-N 4105, VDE-AR-N 4110, VFR 2014 |
|
| Type designation |
STP 15000TL-30 |
STP 20000TL-30 |
STP 25000TL-30 |
